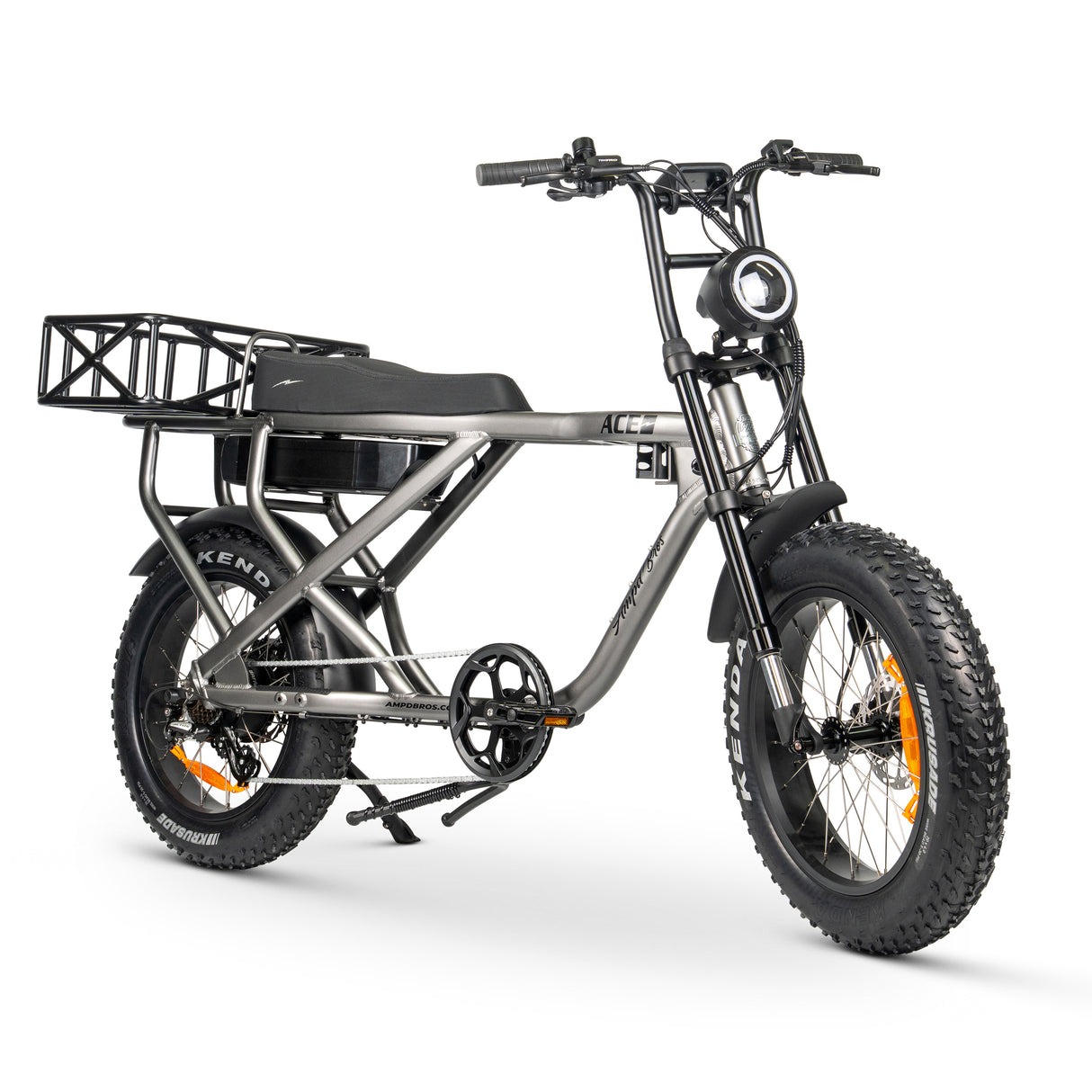

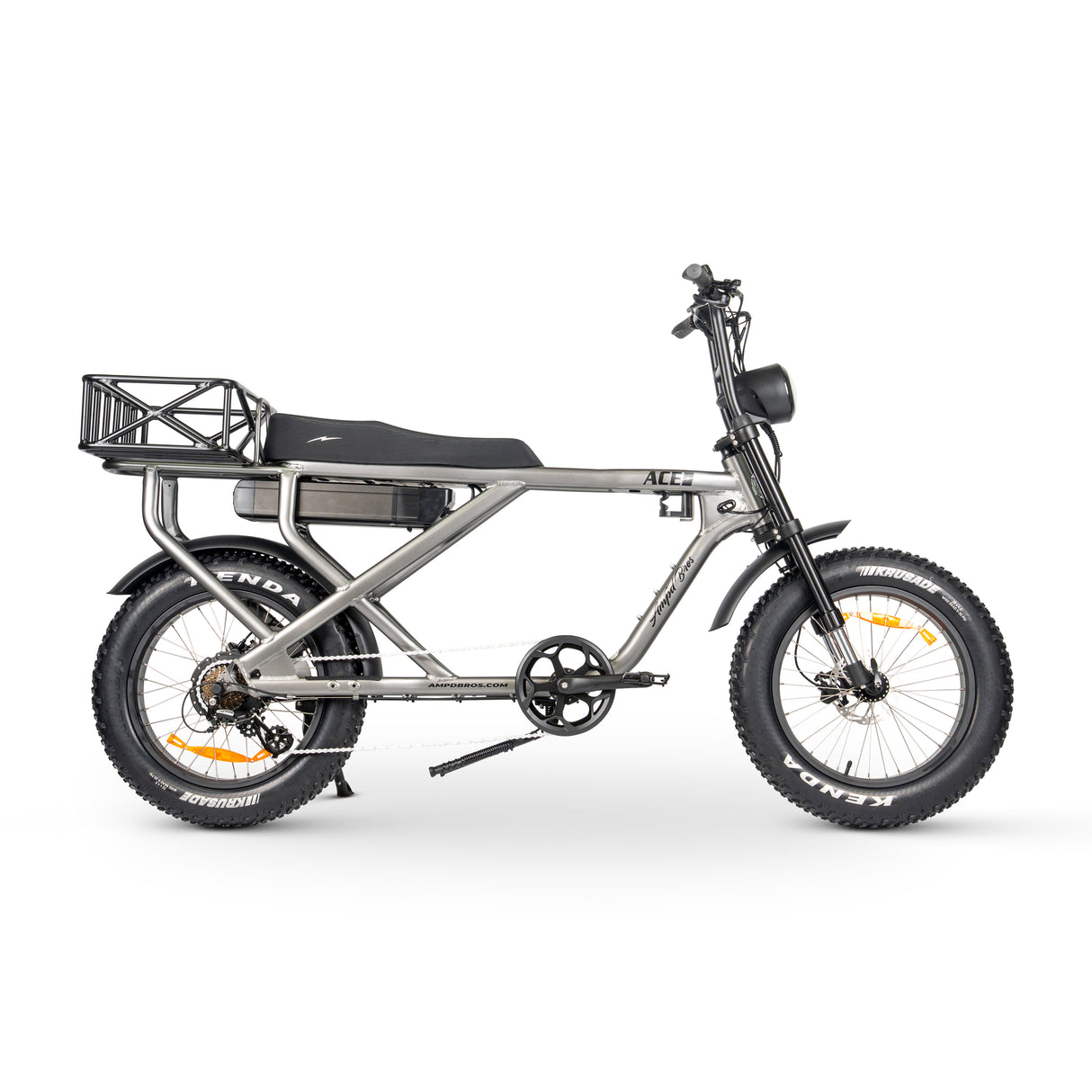

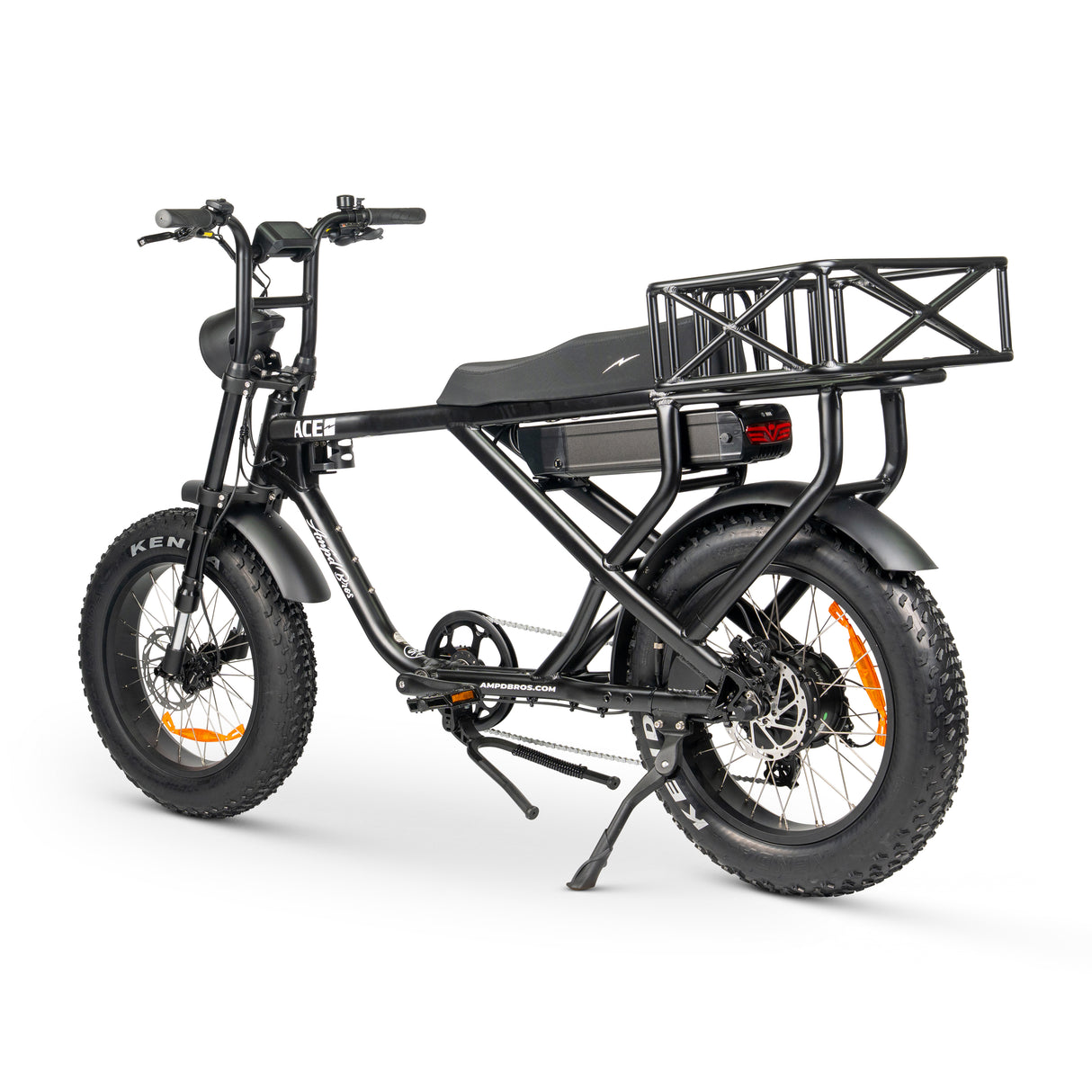

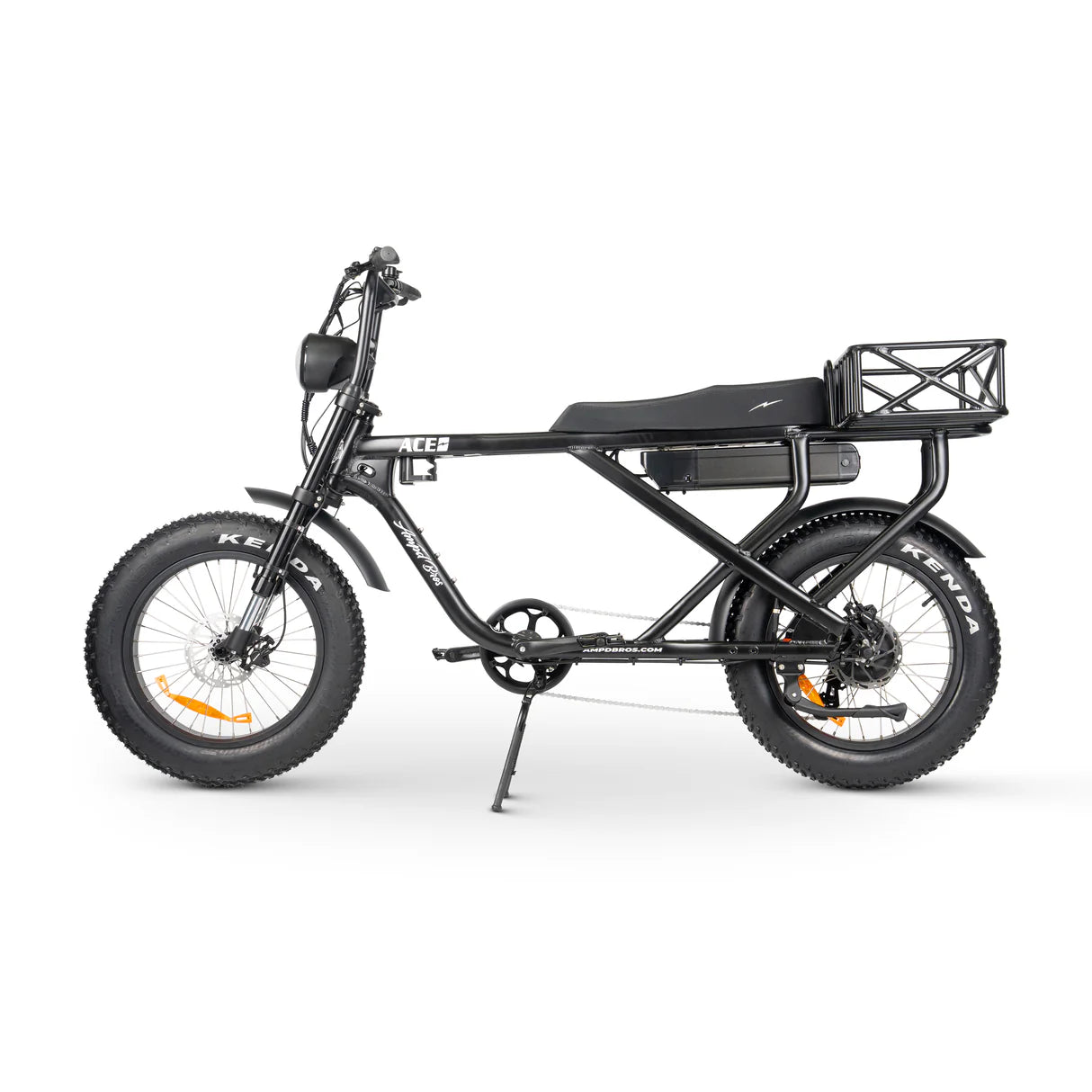

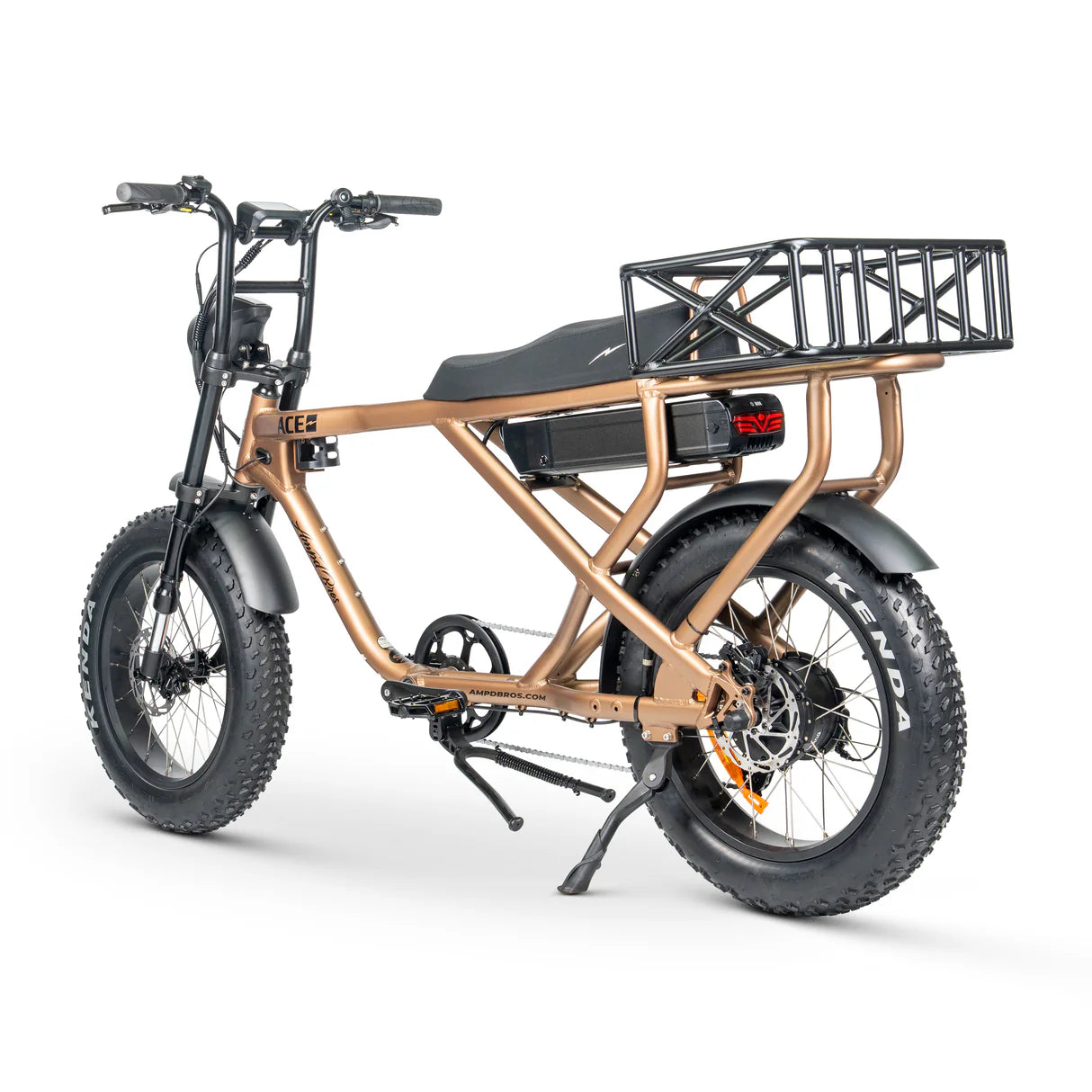

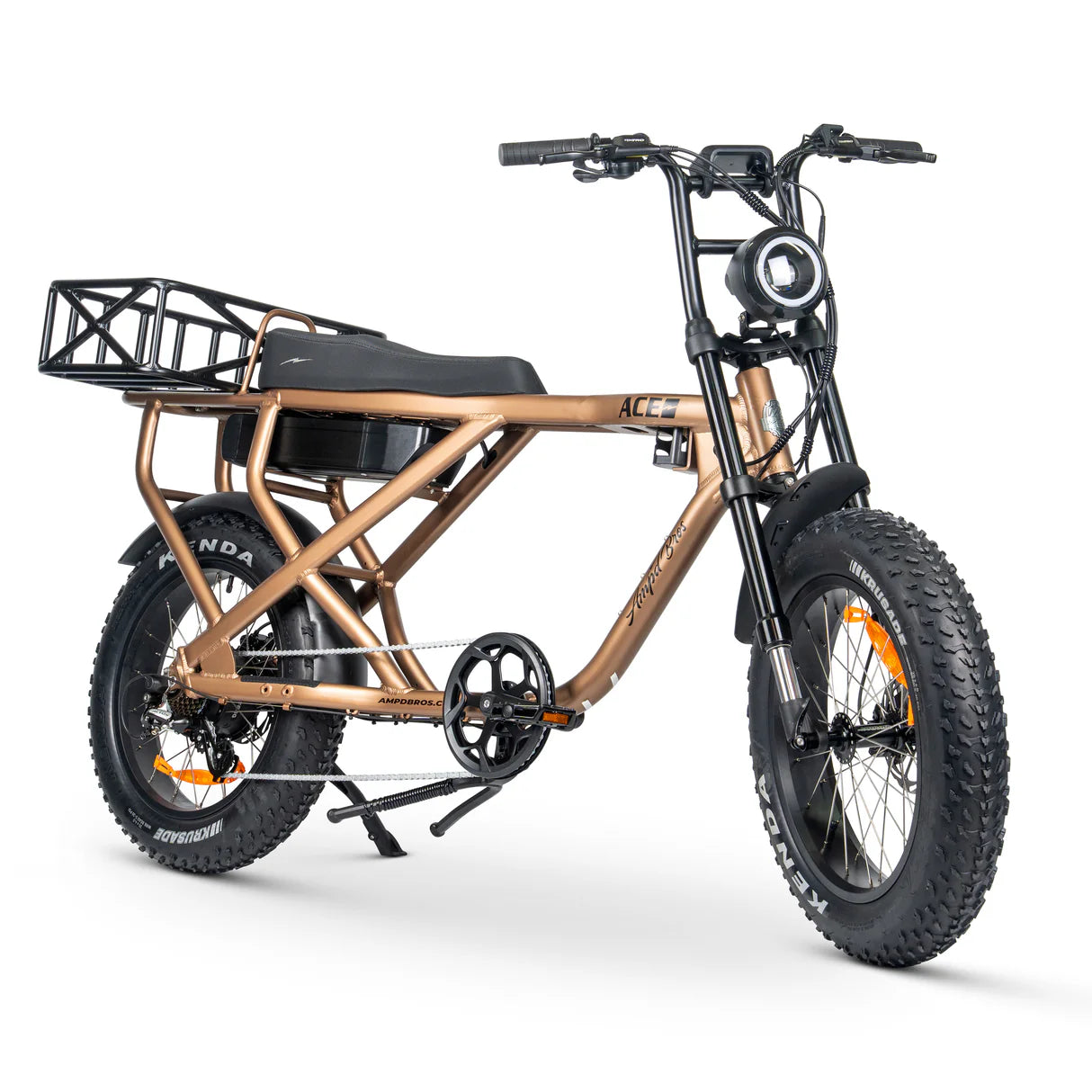

Introducing the ACE-X MAX – Built to Carry More!

The ACE-X MAX is the ultimate evolution of our legendary ACE-X, now redesigned with an integrated heavy-duty rear rack to haul more gear, more weight and even extra passengers. Whether you’re commuting, adventuring, or running errands, this powerhouse e-bike is built to handle it all with ease.

Equipped with front suspension forks, the ACE-X Cargo MAX delivers a smooth, stable ride across any terrain. At its core, the high torque 80N.M Bafang Rear Hub Motor provides the power you need to cruise faster and conquer tougher trails without breaking a sweat.

Designed for durability and versatility, this bike is ready for whatever you throw at it.

Since 2019, the ACE Bike series has been Australia’s most sought-after fat tyre e-bike, and the Cargo MAX takes it even further. Featuring a Shimano 7-Speed Derailleur, bold colour options, and our GEN3 Aluminium Battery with 21700 cells (30% larger than competitors), it’s built for maximum power, efficiency, and reliability.

The Custom Master Control unit enhances performance with advanced motor algorithms, seamless light controls, and improved diagnostics. Powered by Bafang’s High Torque Motor, the ACE-X Cargo MAX is engineered to handle big loads, big adventures, and big expectations.

More Cargo. More Power. More Possibilities.

The ACE-X MAX is ready. Are you?

What's New for ACE MAX?

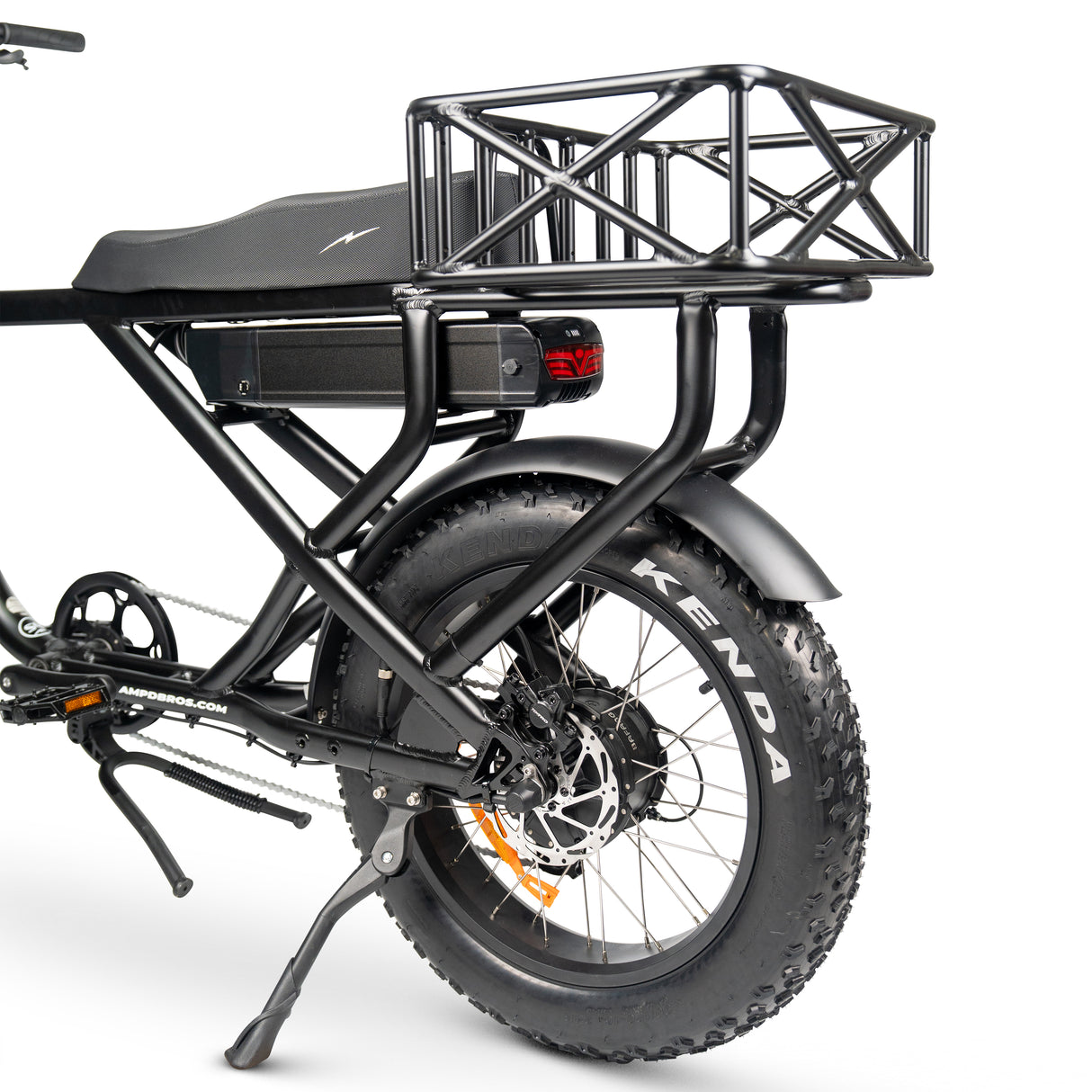

• Extended to Integrate a Large Rear Rack
• 52V 20AH Battery
• Micro Intelligent Colour Display
• Front Suspension Fork
• Ampd Bros Signature Headlight
• Epic Metallic Colours for 2025

The ACE-X ensures no adventure is off-limits, accommodating two riders with its spacious seat. The removable Samsung Battery delivers an incredible 80km range on a single charge. From beaches to hills, dirt tracks to pavements, the ACE-X handles it all effortlessly. Opt for the Off-Road Throttle Kit for cruising ease, and embrace rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.

Experience the thrill of riding like never before with the ACE Cargo by Ampd Brothers - your perfect companion for every adventure, delivering unparalleled performance, style, and durability. 🌟🔋🚲

ACE SERIES 4

Range

•  Ace Mini Models 40km+
•  Ace Standard Models 60km+
•  Ace Plus/Cargo Models 80km+

Battery

•  Ace Mini 52V / 480Wh, 10AH (2026 Models+)
•  Standard 52V / 780Wh, 15AH
•  Plus/Cargo 52V / 1,040Wh, 20AH
•  Samsung Premium 21700 Lithium cells
•  Battery is removable and can be charged in bike or separately.

Motor Drive

•  All Models Bafang Rear Hub High Torque Motor
•  Ace Mini & Standard 65N.m
•  Ace Plus+ & Cargo 80N.m
•  All Models Continuous Output 250W, Restricted to 25km/h

Controller

• Ampd Bro's Custom - Best-in-class power density and state-of-the-art motor control algorithms.
•  Ace Mini & Standard Rated to 500W / Peak 750W+
•  ACE Plus/Cargo Rated to 750W / Peak 1,000W+

Ride Modes

•  Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
•  Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
•  Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit

Features

•  Hill Ability Up to 15º Degree / 25% Incline PAS
•  Seat Custom Large Black Dual Seat for 2 Riders
•  Warranty 2 Years (1 Year on Batteries)
•  Lights Front LED Headlight with DRL
•  Lights Rear LED Brake Light inbuilt to battery pack
•  Grips Black Velo Wide Comfort
•  Bell Yes

Brakes

•  Ace Mini Ampd Bros Hydraulic with 160mm Disc
•  Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
•  E-Brakes Yes Motor Safety Cut Off

Display

• Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc

Drivetrain

•  Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
•  All Other Models Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
•  Derailleur Shimano Altus
•  Pedals Wellgo Alloy - Black
•  Chain KMC Z Series High Performance & Rust Resistant

Construction

•  Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
•  Handlebars Aluminium Motorcycle Inspired with Adjustable Height
•  Fenders Matte Black Aluminium

Suspension

•  Mini & Standard Models No Suspension
•  Plus+ Models Front Custom Tuned Adjustable Fork
•  Cargo Models Front Independent Suspension Fork (Non Adjustable)

Wheels & Tyres

•  Ace Mini 16x.40" Innova Mud Tyres
•  20x4.0" Kenda Krusade Fat Mud Tyres

Charging

• 5-6hrs 10Ah Batteries with Standard 2A Charger
• 7-8hrs 15Ah Batteries with Standard 2A Charger
• 9-10hrs 20Ah Batteries with Standard 3A Charger
• Optional 5A Fast Charger Available for 2.5x Faster Charging

Dimensions

•  Overall Length 1,750 mm
•  Handlebar Height 1,140 - 1,190 mm
•  Handlebar Width 660 mm
•  Seat Height 810 mm Fixed Height
•  Seat Length 600 mm
•  Ground Clearance 270 mm
•  Wheel Base 1,160 mm
•  Rider Height Ideal for Riders up to 200cm Tall

Ace Mini Dimensions

•  Overall Length 1,470 mm
•  Handlebar Height 1040 mm
•  Handlebar Width 660 mm
•  Seat Height 770 mm Fixed Height
•  Seat Length 370 mm
•  Ground Clearance 190 mm
•  Wheel Base 990 mm
•  Rider Height Ideal for Riders up to 170cm Tall

Weights

•  N.W of 10Ah Battery 3.2kg
•  N.W of 15Ah Battery 4.34 kg
•  N.W of 20Ah Battery 5.12 kg
• N.W of Standard ACE + Battery 32.3 kg
•  N.W of ACE Plus+ Battery 36 kg
•  N.W of ACE Mini + Battery 29 kg
•  N.W of ACE Cargo + Battery 40.5 kg
• Max Loading 180 kg
• ACE Mini Max Loading 100 kg
